Tennant S20

ABOUT THE MACHINE KEY FEATURES SPECIFICATIONS

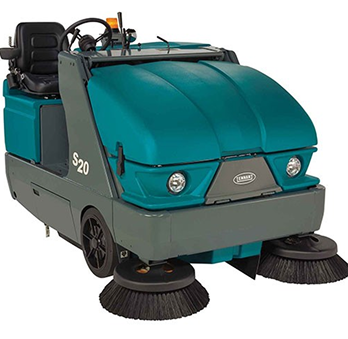

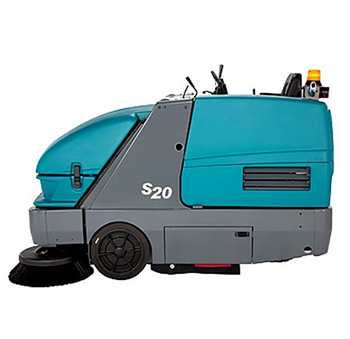

S20
Compact Self-Propelled Sweeper

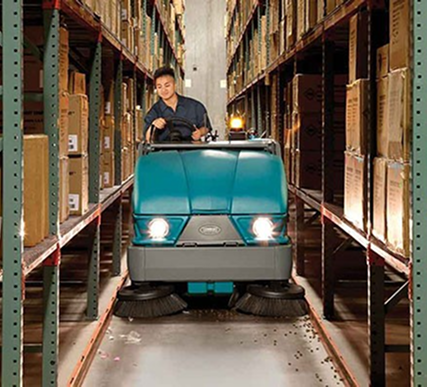

Rely on the compact S20 self-propelled sweeper to deliver impressive performance – both indoors and outdoors – even in harsh environments. The S20's innovative Tennant technologies reduce costs by increasing uptime, increasing operator safety and simplifying maintenance. Help manage silica dust with an optional HEPA filtration system.

Key features

  • Get exceptional control over dust with exclusive SweepMax® cyclone filtration technology that removes most dust and moisture.
  • Clean the filter from the inside by removing dust particles from deep into the filter folds, thanks to the ShakeMax® 360 system.
  • Save training time and costs with intuitive all-lever forward control and tool-free maintenance features.
  • Achieve excellent cleaning results, even in the most demanding environments.
  • Enjoy the performance of a mid-size self-propelled sweeper while maintaining the manoeuvrability of a compact model.

Reduce cleaning costs

Exclusive Tennant technologies and maintenance features reduce operating costs and extend machine life.

  • Extend filter uptime and life with the ShakeMax® 360 system, which removes dust particles from deep folds and improves air filtration.

  • Maximize uptime with easy-open, tool-free lids for quick service.

  • Reduce your operating costs with the cyclonic SweepMax® pre-filter, which removes most of the dust and moisture before it reaches the cartridge filter.

  • Provide exceptional dust release at lower operating pressures with a nanofiber cartridge filter that lasts three to five times longer than other filters.

  • Reduce cleaning time with optional dual side brushes, a 62-inch (1,575 mm) sweeping path and a capacious dirt tank.

Specifications

  • Estimated Capacity/Cleanliness: Up to 163,680 sq. m. ft. / 15,120 m²

  • Dust Control Systems: Dry

  • Noise level: from 81 dBA +/- 1.7 dBA (D/G/LP), 80 dBA +/- 1.7 dBA (battery)

  • Estimated Working Time: Up to 4 hours or continuous operation

  • Side Brush Dimensions: 23 in / 580 mm (Diameter)

  • Tank Capacity: 11.0 Cubic Feet / 310 L

  • Cleaning Width: 50 in / 1270 mm, 62 in / 1575 mm

  • Application: Indoor & Outdoor

  • Sweeping Technology: Direct Throw

  • Air/Brush Technology: Brush

  • Machine Type: Self-propelled

  • Power Source: Battery, Gas, LPG, Diesel

  • Main Brush Dimensions: 36 in / 915 mm

  • Driving Speed: Up to 6mph / 10km/h

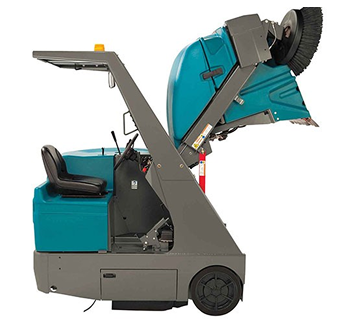

  • Emptying Type: High rash
